Olympus EVIS 140 series video system

Olympus processor CV-140

Features of the Olympus 140 CV Video Processor

• Automatic gain control (AGC) The image can be electrically amplified when the light is inadequate due to the distal end of the videoscope being too far from the subject.

• Iris mode selection The area over which light is measured can be changed according to the body part that is being observed. The following selections can be performed using the “IRIS” switch on the front panel. AVE: during normal observation; Peak: When focusing on and/or observing a small bright area.

• Freeze screen displayA stationary image can be displayed using the endoscope switch, keyboard or OVC switch.

• Video signal outputVBS composite, Y/C, RGB; simultaneous output is possible.

Olympus CLV-U40 300W xenon light source.

• Automatic brightness control
• Average lamp life of approximate 500 hours
• Air feeding pump with 4 level switching
• Emergency backup lamp
• Compatible with Evis 200, 160, 140, 100 series video scopes to OES fiber scopes and all rigid endoscope

Dimensions & Weight:

• Width:   59 cm
• Height: 17 cm
• Length: 53 cm
• Weight: 22 kg

Olympus 140 series video scope:

Olympus Gastroscope GIF-140

• Full screen display size give superior image quality
• Extra-wide field of view of 140 degrees
• Compatible with CV-180, CV-160 and CV-140 video processors

Specifications:

• Diameter: 10.5mm
• Working Length: 103cm
• Instrument Channel: 2.8 mm
• Field of View: 140 degrees
• Angulation Range:  Up: 210, Down: 90, Right: 100, Left 100

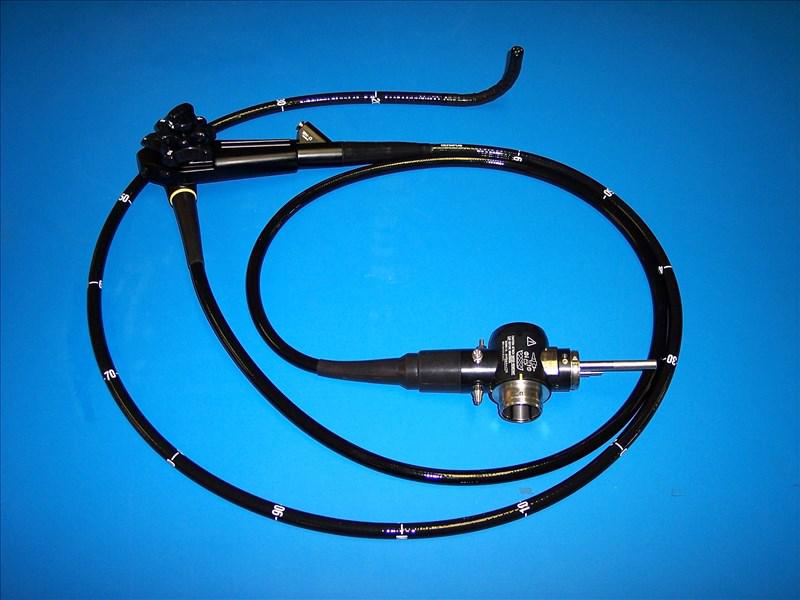

Olympus Colonoscope CF-140L

• Unrivaled image quality with superior life-like color reproduction
• Improved valve design
• Improved ergonomic controls
• Compatible with CV-180, CV-160, CV-140 and CV-100 video processors

Specifications:

• Diameter: 12.9mm
• Working Length: 168cm
• Instrument Channel: 3.7 mm
• Field of View: 140 degrees
• Angulation Range:  Up: 180, Down: 180, Right: 160, Left 160

Olympus ERCP scope TJF-140

• Superb treatment capability with exceptionally large 4.2mm diameter instrument channel that accommodates a wide range of Endo-Therapy accessories including a variety of stents
• Improved valve design for air/water and suction
• Redesigned water bottle connector
• Compatible with CV-180, CV-160, CV-140 and CV-100 video processors

Specifications:

• Diameter: 12.5mm
• Working Length: 124cm
• Instrument Channel: 4.2 mm
• Field of View: 100 degrees
• Angulation Range:  Up: 120, Down: 90, Right:  110, Left: 90
